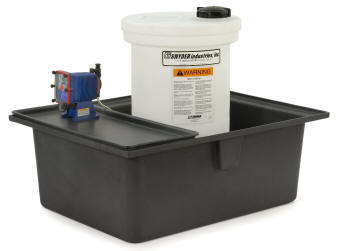

Chemical Feed Stations
  • Material options for primary tanks for a diverse range of application requirements
  • - High-density linear polyethylene (HDLPE)*- black and natural white color - complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
  • - Cross-linked, high density polyethylene (XLPE) - black and natural white color
  • Opaque white sodium hypochlorite resin #880059 (for primary tank)
  • Sulfuric acid resin #880046 (for primary tank)
  • Containment basins constructed of HDLPE (Black Color) and are available with or without a detachable pump shelf.
  • Containment basins are nestable for shipping with the pump shelf removed.
  • Available in a wide variety of sizes, 35-330 gallons.
  • Polyethylene stands are available (as an option) to provide easy access to bottom sidewall or bottom of tank connections.
  • Tanks designed for chemicals with specific gravities up to 1.9.
  • All materials are UV stabilized for long-term outdoor service.
 Chemical Feed Stations

Chemical Feed Stations Poly Tanks

Tank dimensions may vary depending on manufacturing location - please contact factory for drawing specific to the F.O.B. location. Specifications Subject to Change Without Notice.
NOTE: Dimensions listed below and on drawings may vary +/- 3% (standard rotational molding tolerance).

Part No. CHEMICAL FEED STATIONS Width Length Height F.O.B.
1000102CF-- 35 Gallon Chem-Feed Station 36 47 36 M
1000102CFWS-- 35 Gallon Chem-Feed Station w/Stand 36 47 52 M
5680001CF-- 60 Gallon Chem-Feed Station 36 47 42 M
5680001CFWS-- 60 Gallon Chem-Feed Station w/Stand 36 47 58 M
5690000CF-- 90 Gallon Chem-Feed Station 43 56 40 M
5690000CFWS-- 90 Gallon Chem-Feed Station w/Stand 43 56 53 M
5700000CF-- 120 Gallon Chem-Feed Station 43 56 50 M
5700000CFWS-- 120 Gallon Chem-Feed Station w/Stand 43 56 66 M
5710000CF-- 150 Gallon Chem-Feed Station 43 56 60 M
5710000CFWS- 150 Gallon Chem-Feed Station w/Stand 43 56 76 M
5720000CF-- 200 Gallon Chem-Feed Station 62 76 56 M
5720000CFWS-- 200 Gallon Chem-Feed Station w/Stand 62 76 73 M
5730000CF-- 250 Gallon Chem-Feed Station 62 76 68 M
5730000CFWS-- 250 Gallon Chem-Feed Station w/Stand 62 76 84 M
5740000CF-- 275 Gallon Chem-Feed Station 62 76 56 M
5740000CFWS-- 275 Gallon Chem-Feed Station w/Stand 62 76 74 M
5750000CF-- 330 Gallon Chem-Feed Station 62 76 66 M
5750000CFWS-- 330 Gallon Chem-Feed Station w/Stand 62 76 83 M



F.O.B:  L = Lincoln, Nebraska; M = Marked Tree, Arkansas; P = Philippi, West Virginia; C = Chowchilla, California

Chemical storage stations - Chemical storage tanks

We develop and supply innovative chemical storage tanks. Our specially designed poly storage tanks are meant to maximize your systems safety basing on the properties of the stored chemicals.

These tanks are used to store various kinds of liquids as well as chemicals. Our tanks are pretty popular for low maintenance, quality design and leakage proof. We develop these storage Tanks keeping eye on clients specific requirements. Our strong and durable tanks are available in various configurations that includes vertical, horizontal, above ground as well as underground. Here you can find detailed description of different kinds chemical storage tanks.

Our storage tanks are designed to satisfy your several storage functions. Our tanks are designed for the chemicals with special gravities up to 1.9. The materials we use are in the long run outdoor service and are UV stabilized. The tanks we provide are available in a wide variety of sizes that is 35-350 gallons.
